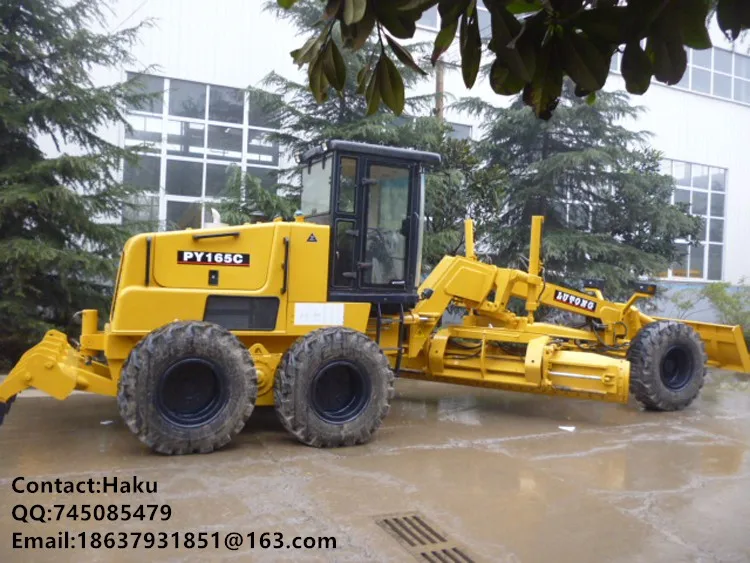

LUTONG PY165C Motor Grader 165HP

FOB Reference Price:Get Latest Price
US $59,000-65,000 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
1000 Set/Sets per Year
Port:
Shanghai / Qingdao
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Forward Speed(km/h):
40.4
Reverse Speed(km/h):
25.7
Place of Origin:
Henan, China (Mainland)
Brand Name:
LUTONG
Model Number:
PY165C
Weight:
15000kg
Dimension(L*W*H):
8305*2695*3420
Certification:
ISO CE
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Yellow
Packaging & Delivery
Packaging Details
1 unit / 1*40HQ
Delivery Time
Within 30 days after receive 30% deposit

165HP Motor Grader PY165C  China Lutong - supplier of Metec

Main Features:

 Using Cummins inter-cooling supercharged diesel engine with strong power and reliable performance.

♦ Torque converter and power-shift gearbox introduced from Germany ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine's working and transporting.

♦ Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, boxed oscillated steering front axle with leaned wheels.

♦ Popular working mechanism with pendulum-arm connecting rod structure. Standard equipped free-maintenance rolling-plate circle device. Double cylinders of the operated pin drawing device is designed firstly in abroad.

♦ Flexible hydraulic control system with two sets of HUSCO five way control valve; Imported hydraulic equalizing valve for the blade lifting; Patent hydraulically operated pin drawing device is designed firstly in board.

♦ Steering system with center articulated joint and tilting turning front wheel, could get offset travel of the entire mcahine.

♦ Hydraulic operating with entire instrumental monitoring system, maintenance-free Optima battery.

♦ It’s optional for front bulldozing plate and rear ripper.



Engine model



Cummins 6BT5.9

Engine power

kw

100

Engine speed

r/min

2200

Operating mass

kg

11000

Overall dimensions

mm

8305×2695×3420

Max. forward speed

km/h

40.4

Max. backward speed

km/h

25.7

Speed gear number



6F+3R

Hydraulic system pressure

Mpa

18

Min. turning radius

mm

6600

Blade length × height

mm

3660×610

Front axle load

kg

4150

Rear axle load

kg

10850

Front wheelbase

mm

2150

Rear wheelbase

mm

2255

Wheelbase

mm

5347
